Comb lighting KLG102-W
Privatkunden finden unser Sortiment auch im Partnershop Ampha-Analyse.
Indikator für Comb lighting KLG102-W:
Siehe auch:

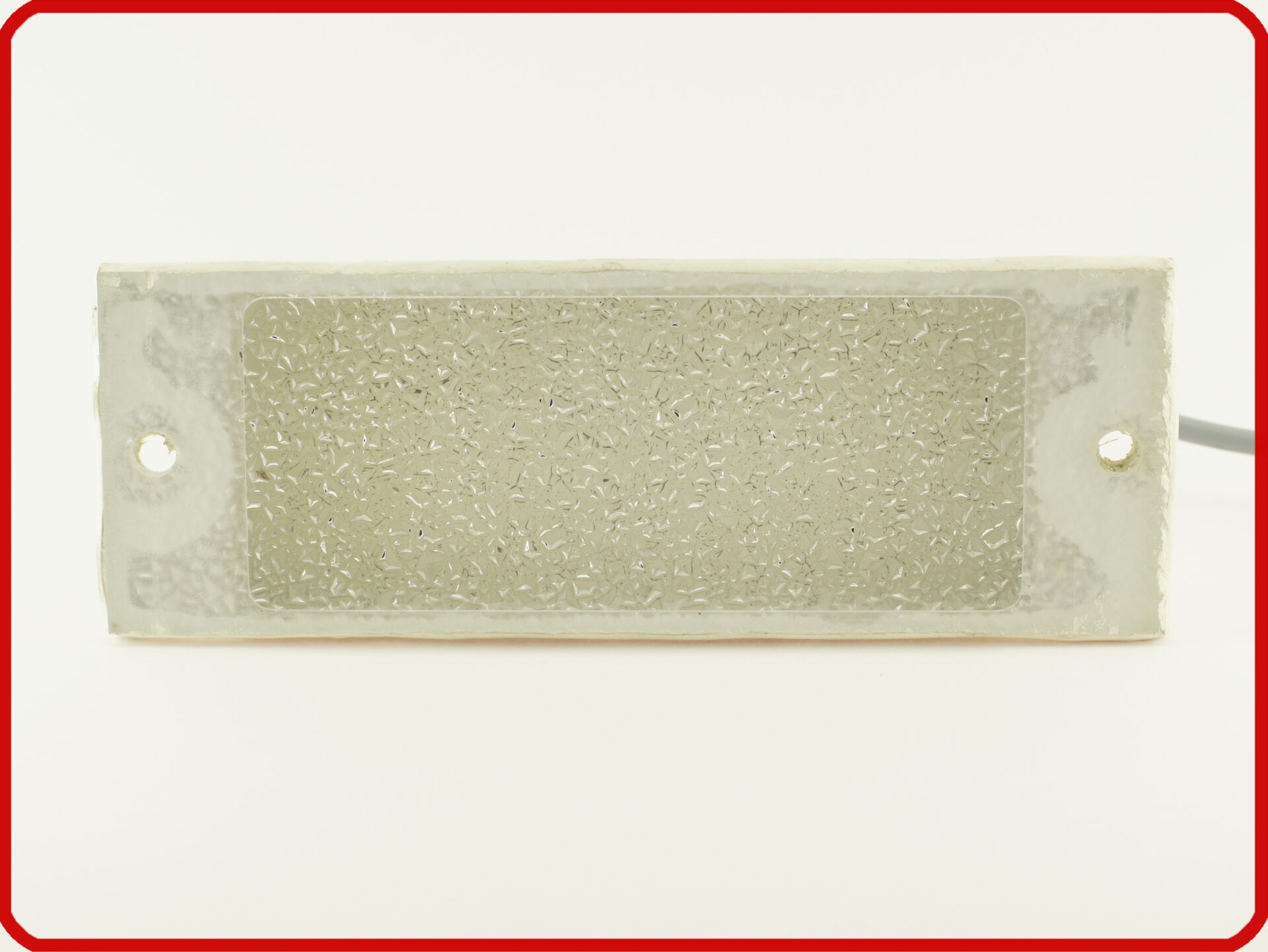

The use of LEDs in the KLG102-W comb lighting ensures a long service life.
Special features are:
- Very bright LED lighting
- Extremely robust electrical design, no damage to the LEDs due to electrical fluctuations
- Low power consumption
- durable
- Insensitive to soiling
- IP 67
The KLG102-W comb lighting is used in the comb area of escalators.
| Parameters | Value |
| Operating voltage | 16 … 28 V AC |
| Power consumption | 4 VA |
| Ambient temperature | -20°C to 60 °C |
| Protection class | IP 67 |
| Dimensions | 232 x 82 mm |
| Installation depth | 52 mm |
| Weight | 580 g |
| Parameters | Value |
| LED color | white |
| Luminosity | 120 lx (1 m distance) |
| Windshield | PMMA Plexiglas ice crystal |
| Windshield dimensions | 169 x 69 mm |
| Height of the contour | 3 mm |
| Supply line | 2 x 0.5 mm², length 100 cm, Ölflex, wire end ferrules |
