Direction indicator RS70114-W-G/Q-check

Article number:
Category
Quantity
Angebot anfordern
Indikator für Direction indicator RS70114-W-G/Q-check:

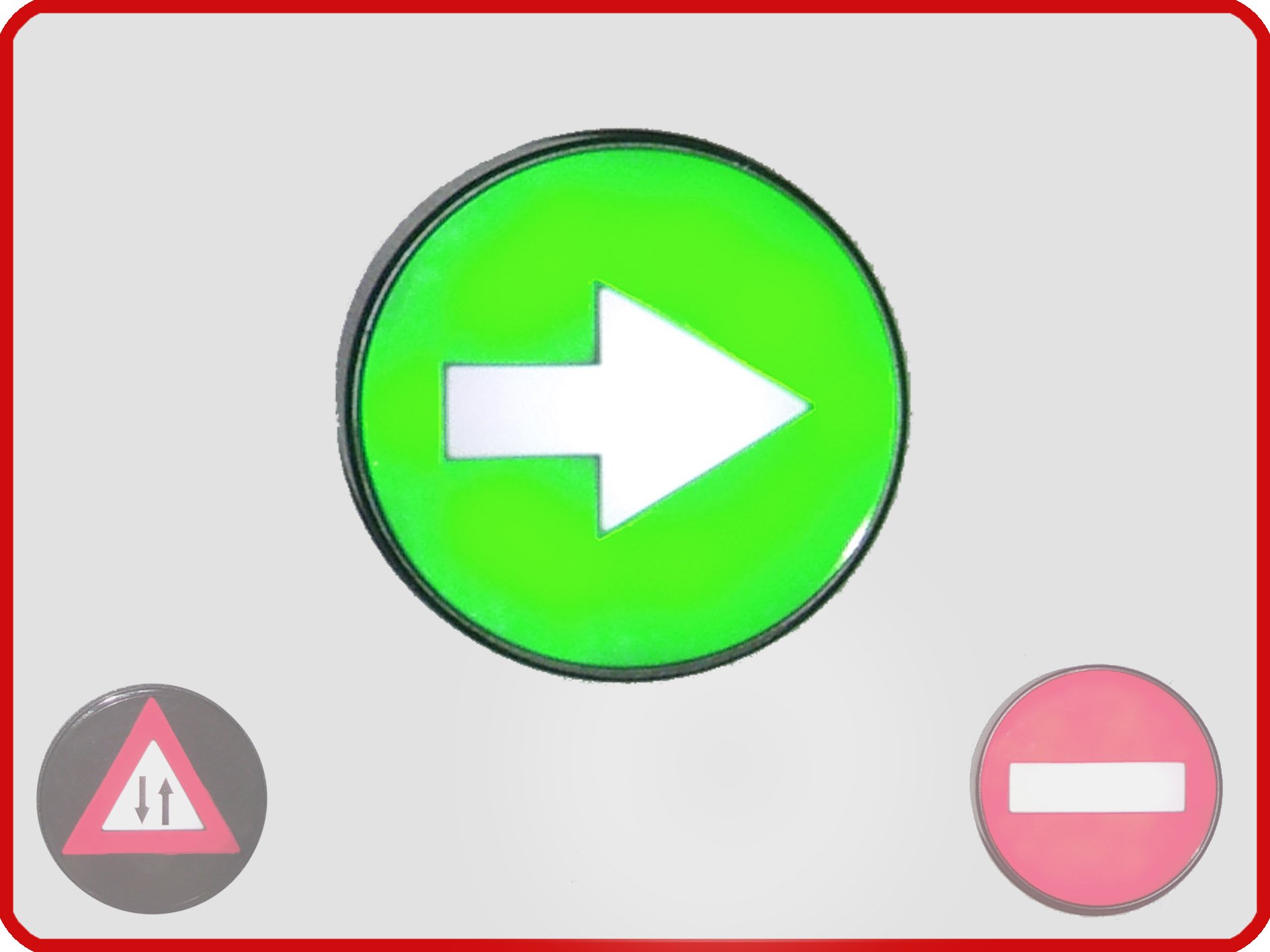

The RS70114-W-G/Q-check direction indicator with function monitoring is a white backlit direction arrow pointing to the right on a green background. The RS70114-W-G/Q-check traffic light has a high optical contrast combined with low consumption and homogeneous illumination.

Special features are:

  • Function monitoring
  • for installation in round columns with 114 mm diameter
  • Front panel for installation in 70 mm recess
  • Curved windshield
  • Wide input voltage range
  • Robust and durable
  • No symbols recognizable in de-energized state
  • Special version for 12 V possible

Areas of application for the RS70114-W-G/Q-check direction indicator:

  • Passenger transportation facilities
  • Traffic flow control
  • Access control

Parameters Value
Operating voltage 16 … 28 V AC / 16 … 36 V DC
Power consumption type. 2.6 VA
Ambient temperature -20°C to 60 °C
Protection class IP 67

Parameters Value
LED color white
Luminosity type. 30 lx (0.5 m distance)
Windshield d = 70 mm, curved
Connection 2 x 0.5 mm², length 30 cm, wire end ferrules

Additional information

Weight 0,0000 kg
Dimensions 0,0000 × 0,0000 × 0,0000 cm
