Direction indicator EB6000-W-R-check
Private customers can also find our range in our partner store Ampha-Analyse.
Reagent for Direction indicator EB6000-W-R-check:
See also:

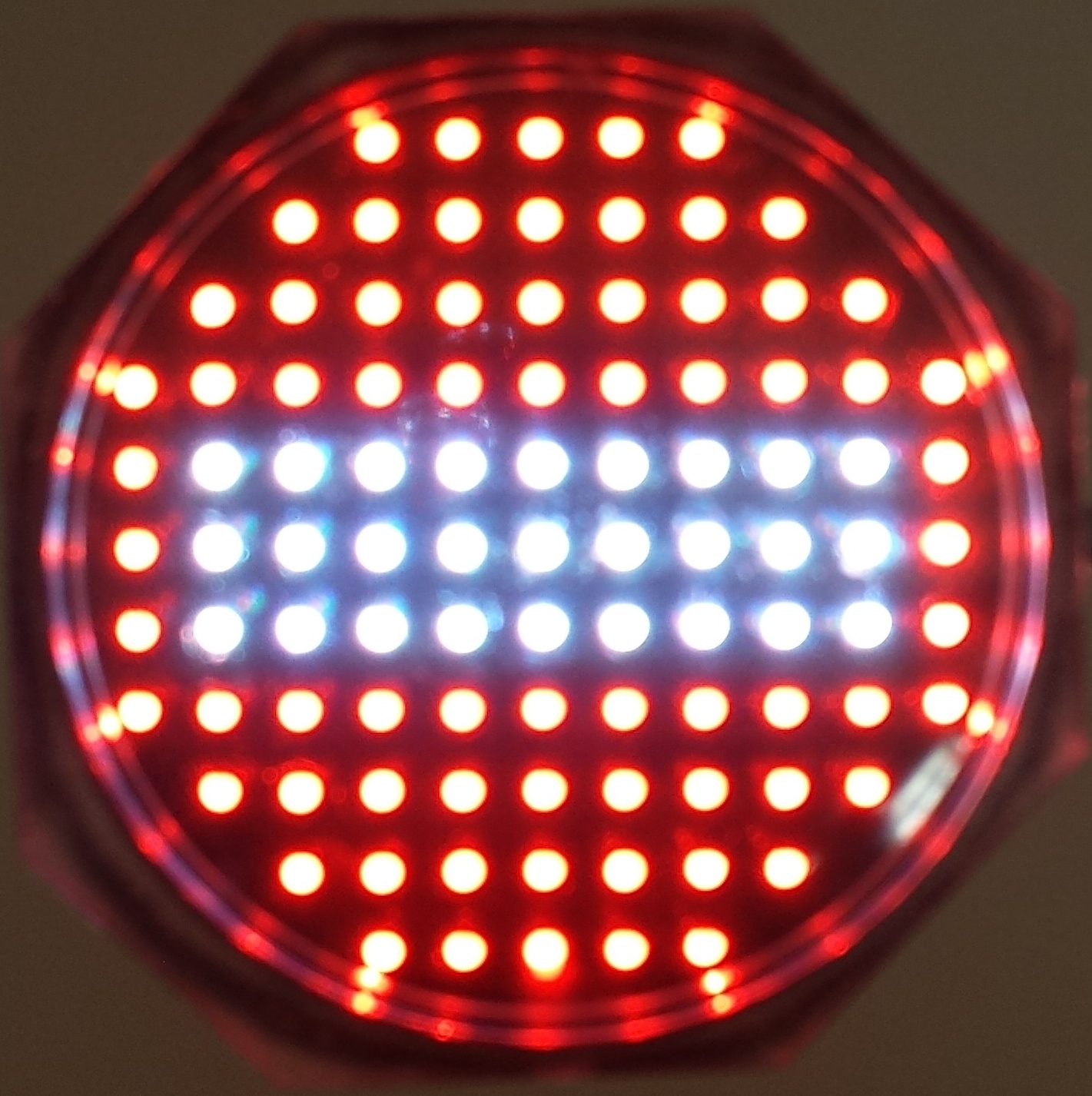

The EB6000-W-R-check direction indicator with function monitoring is a white backlit bar on a red background (one-way street symbol). The EB6000-W-R-check traffic light has a high optical contrast combined with low consumption and homogeneous illumination.
Special features are:
- Function monitoring
- For installation in balustrades with 60 mm recess
- Curved windshield, replaceable
- Wide input voltage range
- Robust and durable
- No symbols recognizable in de-energized state
- Special version for 12 V possible
Areas of application for the EB6000-W-R-check direction indicator:
- Passenger transportation facilities
- Traffic flow control
| Parameter | Value |
| Operating voltage | 16 … 28 V AC / 16 … 36 V DC |
| Power consumption | type. 2.6 VA |
| Ambient temperature | -20°C to 60 °C |
| Protection class | IP 67 |
| Installation depth | 65 mm |
| Parameter | Value |
| LED color | white |
| Luminosity | type. 60 lx (0.5 m distance) |
| LED service life | 50.000 h |
| Front screen | d = 60 mm, curved (r = 387.5 mm) |
| Connection | 2 x 0.5 mm², length 30 cm, wire end ferrules |
Additional information
| Weight | 0,0000 kg |
|---|---|
| Dimensions | 0,0000 × 0,0000 × 0,0000 cm |
