LED-Spot 28 mm mit Halterung

LED spot 28 mm with bracket

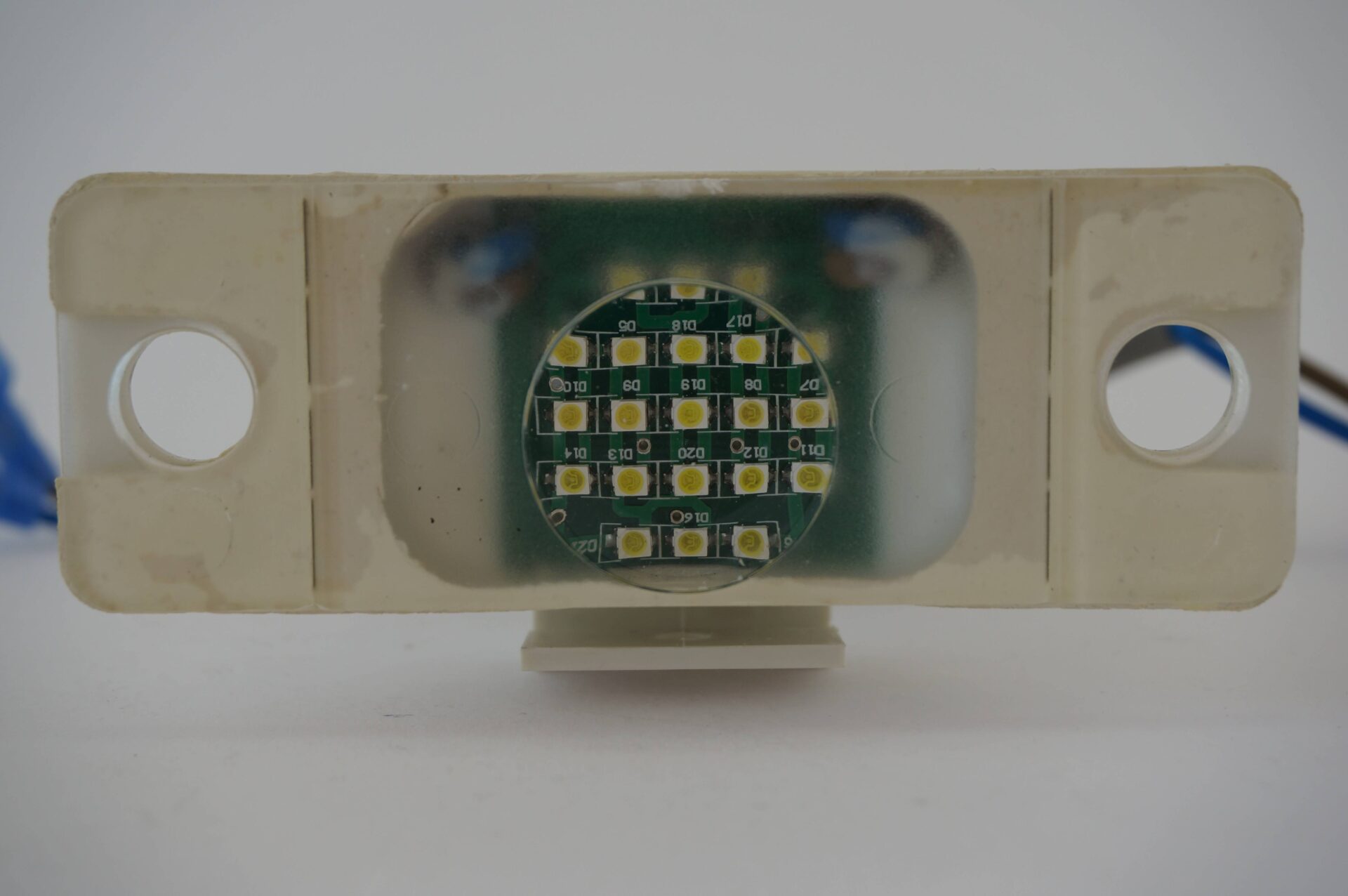

LED Spot 28 mm with bracket. With mounting hook, it is a lighting element with 21 super-bright high-quality SMD LEDs. It is compatible with KONE KM5070530H01.
Article number:
80-001141 Category
Quantity
iHow it works
  1. 1Add to your quote
  2. 2Review & submit your list
  3. 3Personal quote – within 24 h on business days

More safety on escalators: robust sensor, signalling and lighting technology – compliant with EN 115.

Datasheet & docsRequest advice
Made in GermanyEN 115 compliantISO 9001 (TÜV NORD)made in Hildesheim
Request a Quote

Private customers can also find our range in our partner store Ampha-Analyse.

Reagent for LED spot 28 mm with bracket:
See also:

LED Spot 28 mm with bracket

The LED spot 28 mm with bracket and mounting hook is a lighting element with 21 super-bright high-quality SMD LEDs. It is compatible with KONE KM5070530H01.

Use on escalators and moving walks

LED spots from RLS Wacon are used to illuminate escalators and moving walks. The bright, long-life high-quality LEDs provide even illumination with low energy consumption; modifications and custom solutions are possible.

Features

  • very bright LED lighting
  • low power consumption
  • long service life
  • easy installation
  • cascadable

Areas of application

Escalators & moving walks
Accent lighting
Effect lighting
Railway stations / airports
Shopping centres
Public buildings
Hotels
Trade fairs / congresses

Field of use

The 28 mm LED spot with bracket and fastening hook creates bright lighting accents on the escalator and is compatible with KONE KM5070530H01.

Operating principle

Lighting element with 21 super-bright high-quality SMD LEDs, 24 V DC, luminous flux 168 lm, waterproof up to IP65, with current limitation at 65 mA. Including bracket and fastening hook.

Installation

  1. Mount the spot using the bracket and fastening hook supplied (installation depth 34 mm).
  2. Connect the 24 V DC operating voltage (brown +24 V DC, blue GND).

Maintenance & cleaning

  • Regularly inspect the light and the front lens visually.
  • Clean the front lens with a soft, lint-free cloth if dirty.
  • Robust, durable design – low maintenance effort.

Important notes

  • Compatible with KONE KM5070530H01.
  • Install only when de-energised.

Technical Data

Parameter Value
Colour Assignment
brown + 24 V DC
blue GND
