LED Spot SP2800-B

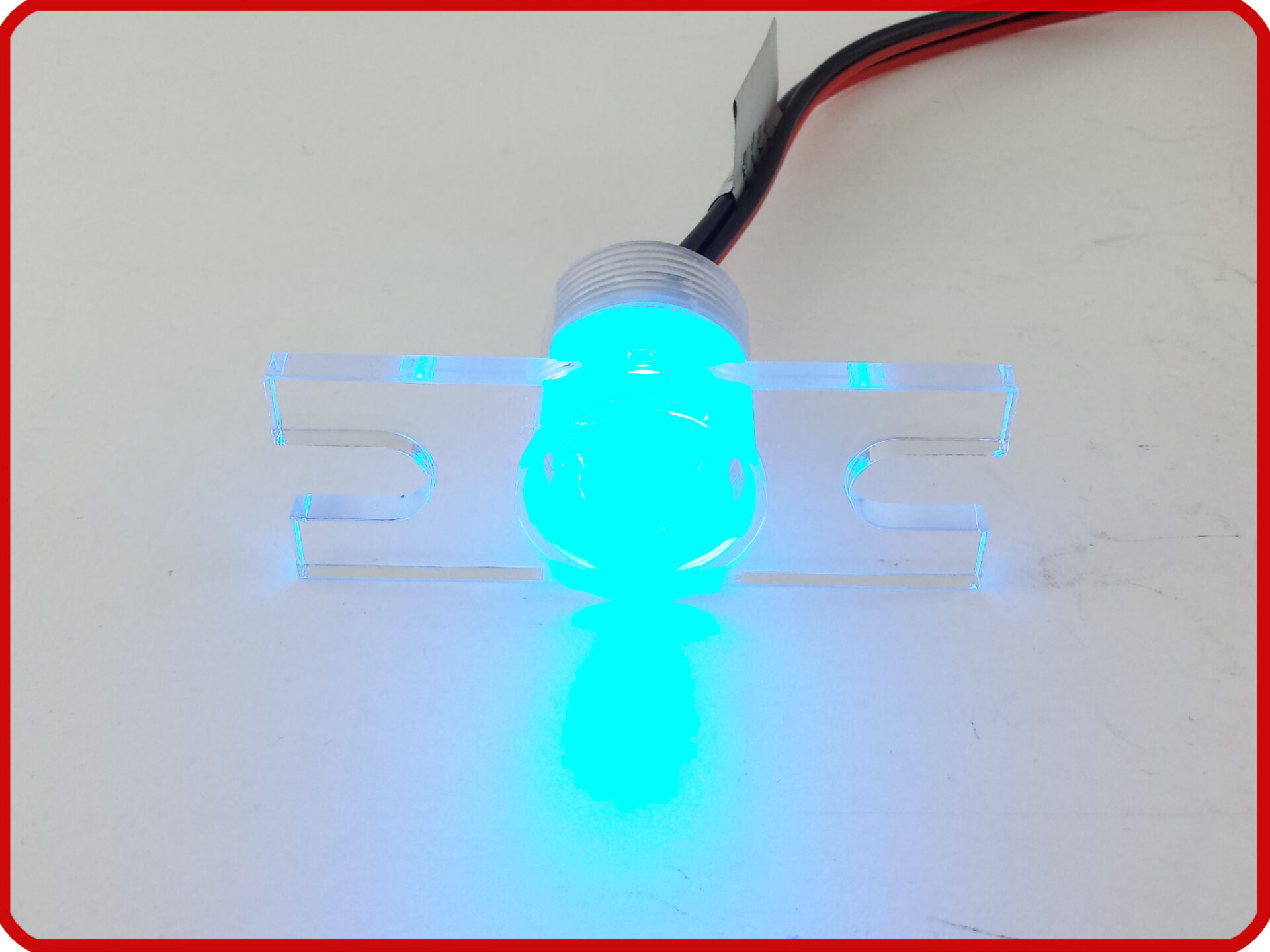

The SP2800-B LED spot is a lighting element with super-bright high-quality LEDs.

Use on escalators and moving walks

LED spots from RLS Wacon are used to illuminate escalators and moving walks. The bright, long-life high-quality LEDs provide even illumination with low energy consumption; modifications and custom solutions are possible.

Features

  • very bright LED lighting
  • low power consumption
  • long service life
  • easy installation

Areas of application

Escalators & moving walks
Accent lighting
Effect lighting
Railway stations / airports
Shopping centres
Public buildings
Hotels
Trade fairs / congresses

Field of use

The SP2800 LED spot creates bright lighting accents on the escalator – here in the blue version.

Operating principle

Lighting element (28 mm) with high-quality LEDs, 24 V DC, luminous intensity 80 lx (0.5 m), low power consumption (0.5 VA), waterproof up to IP65, cascadable.

Installation

  1. Insert the spot into the cut-out provided.
  2. Connect the 24 V DC operating voltage.
  3. When using several spots, make use of the cascading option.

Maintenance & cleaning

  • Regularly inspect the light and the front lens visually.
  • Clean the front lens with a soft, lint-free cloth if dirty.
  • Robust, durable design – low maintenance effort.

Important notes

  • Install only when de-energised.

Technical Data

Parameter Value
Operating voltage 24 V DC +/- 5 %
Power consumption 1,6 VA
Protection class IP 65
LED colour blue
Luminous flux 168 lm
Front lens PMMA Plexiglas satin-finished
Contour height 3 mm
Installation depth 35 mm
Connection 2 x 400 mm, 2 x 0,75 mm², cable lugs
Colour Assignment
red + 24 V DC
black GND
